Debug Options¶

Debug: DEBUG OP Overview¶

When developing or porting operators with AscendNPU IR (e.g. Triton frontend + AscendNPU IR compile/run), debugging is essential. AscendNPU IR provides two main debug ops at different abstraction levels:

HFusion PrintOp: Used during graph compilation and fusion to print intermediate tensors and results.

HIVM DebugOp: Used at the lower HIVM level to print intermediate tensors and results.

This section describes these ops and how to use them, using the Triton frontend as an example.

AscendNPU IR Debug Ops¶

Printing relies on the Bisheng compiler’s cce::printf interface. To enable printing:

Enable the macro __CCE_ENABLE_PRINT__ (e.g. for Triton: export TRITON_DEVICE_PRINT=1).
Build the AscendNPU IR meta op library with --cce-enable-print (currently enabled by default).

hfusion: PrintOp¶

API¶

// hex: whether to print values in hex (default decimal)
// %0: tensor to print, 1D size 8, dtype=int64
hfusion.print " x: " {hex = xxx} %0 : tensor<8xi64>

Usage¶

You can insert PrintOp during HFusion passes or when building IR by hand. Example: To print the result of a load, add hfusion.print in the HFusion IR:

func.func @vector_kernel(%arg0: memref<?xi8> {hacc.arg_type = #hacc.arg_type<sync_block_lock>}, %arg1: memref<?xi8> {hacc.arg_type = #hacc.arg_type<workspace>}, %arg2: memref<?xi64> {tt.divisibility = 16 : i32, tt.tensor_kind = 0 : i32}, %arg3: i32, %arg4: i32, %arg5: i32, %arg6: i32, %arg7: i32, %arg8: i32, %arg9: i32) attributes {SyncBlockLockArgIdx = 0 : i64, WorkspaceArgIdx = 1 : i64, hacc.entry, hacc.function_kind = #hacc.function_kind<DEVICE>, mix_mode = "aiv", parallel_mode = "simd"} {
  %reinterpret_cast = memref.reinterpret_cast %arg2 to offset: [0], sizes: [8], strides: [1] : memref<?xi64> to memref<8xi64, strided<[1]>>
  %alloc = memref.alloc() : memref<8xi64>
  memref.copy %reinterpret_cast, %alloc : memref<8xi64, strided<[1]>> to memref<8xi64>
  %0 = bufferization.to_tensor %alloc restrict writable : memref<8xi64>
  hfusion.print " x: " {hex = false} %0 : tensor<8xi64>
  return
}

HIVM: DebugOp¶

API¶

// debugtype: "print" or "assert"
// hex: whether to print values in hex (default decimal)
// prefix: string printed before the value
// tcoretype: CUBE or VECTOR core
// %0: tensor to print, 1D size 8, dtype=int64
hivm.hir.debug {debugtype = "xxx", hex = xxx, prefix = " xxx: ", tcoretype = #hivm.tcore_type<xxx>} %0 : tensor<8xi64>

Usage¶

You can add DebugOp during HIVM passes or in hand-written HIVM IR. Example: To print the result of a load, add hivm.hir.debug in the HIVM IR:

func.func @vector_kernel(%arg0: i64 {hacc.arg_type = #hacc.arg_type<ffts_base_address>}, %arg1: memref<?xi8> {hacc.arg_type = #hacc.arg_type<sync_block_lock>}, %arg2: memref<?xi8> {hacc.arg_type = #hacc.arg_type<workspace>}, %arg3: memref<?xi64> {tt.divisibility = 16 : i32, tt.tensor_kind = 0 : i32}, %arg4: i32, %arg5: i32, %arg6: i32, %arg7: i32) attributes {SyncBlockLockArgIdx = 0 : i64, WorkspaceArgIdx = 1 : i64, func_dyn_memref_args = dense<[false, true, true, true, false, false, false, false]> : vector<8xi1>, hacc.entry, hacc.function_kind = #hacc.function_kind<DEVICE>, mix_mode = "aiv", parallel_mode = "simd"} {
  %0 = arith.muli %arg5, %arg6 : i32
  %1 = arith.muli %0, %arg7 : i32
  annotation.mark %1 {logical_block_num} : i32
  %reinterpret_cast = memref.reinterpret_cast %arg3 to offset: [0], sizes: [8], strides: [1] : memref<?xi64> to memref<8xi64, strided<[1]>>
  %alloc = memref.alloc() : memref<8xi64>
  hivm.hir.load ins(%reinterpret_cast : memref<8xi64, strided<[1]>>) outs(%alloc : memref<8xi64>) init_out_buffer = false may_implicit_transpose_with_last_axis = false
  %2 = bufferization.to_tensor %alloc restrict writable : memref<8xi64>
  hivm.hir.debug {debugtype = "print", hex = false, prefix = " x: ", tcoretype = #hivm.tcore_type<CUBE_OR_VECTOR>} %2 : tensor<8xi64>
  return
}

Triton Integration¶

Multiple frontends integrate with AscendNPU IR; here we describe Triton. The other methods including TileLang, FlagTree, DLCompiler, and TLE, can also follow Triton’s pattern.

Triton debug-related ops are classified into the following types:

static_assert: static compile-time assertion
static_print: static compile-time print
device_assert: runtime device assertion
device_print: runtime device print

static_assert¶

API¶

# condition: bool – compile-time constant boolean
# message: str – optional message when assertion fails
triton.language.static_assert(condition: bool, message: str = "") -> None

Example¶

You can verify the correctness of the functionality by running python3 <file>.py

import triton
import torch
import triton.language as tl

@triton.jit
def kernel_name(x_ptr, y_ptr, n_elements, BLOCK: tl.constexpr):
    tl.static_assert(BLOCK < 0, "BLOCK must > 0")
    pid = tl.program_id(0)
    offsets = pid * BLOCK + tl.arange(0, BLOCK)
    mask = offsets < n_elements
    x = tl.load(x_ptr + offsets, mask=mask)
    tl.store(y_ptr + offsets, x, mask=mask)

def vector(x, y):
    n = x.numel()
    grid = (triton.cdiv(n, 32),)
    kernel_name[grid](x, y, n, 32)

if __name__ == "__main__":
    x = torch.ones(8, device="npu")
    y = torch.empty_like(x)
    vector(x, y)

Assertion effect¶

static_print¶

API¶

# message: str – message to print; can include compile-time constants
triton.language.static_print(message: str) -> None

Example¶

You can verify the correctness of the functionality by running python3 <file>.py

import triton
import torch
import triton.language as tl

@triton.jit
def kernel_name(x_ptr, y_ptr, n_elements, BLOCK: tl.constexpr):
    tl.static_print(f" BLOCK = {BLOCK} ")
    pid = tl.program_id(0)
    offsets = pid * BLOCK + tl.arange(0, BLOCK)
    mask = offsets < n_elements
    x = tl.load(x_ptr + offsets, mask=mask)
    tl.store(y_ptr + offsets, x, mask=mask)

def vector(x, y):
    n = x.numel()
    grid = (triton.cdiv(n, 32),)
    kernel_name[grid](x, y, n, 32)

if __name__ == "__main__":
    x = torch.ones(8, device="npu")
    y = torch.empty_like(x)
    vector(x, y)

Printing effect¶

[warning]: tiling struct [GMMTilingData] is conflict with one in tiling grating tiling
BLOCK = 32
Dumping intermediate results to /root/.triton/dump/KHviKCdUEjStublnqGQietpeng6Sintejlr0t0SujtspD

device_assert¶

Note: set export TRITON_DEBUG=1 and export TRITON_DEVICE_PRINT=1 before before using this function.

API¶

# condition: bool – condition to assert (must be a boolean tensor)
# message: str – optional message when assertion fails

# Triton Language API
triton.language.device_assert(condition: bool, message: str = "") -> None

Example¶

You can verify the correctness of the functionality by running python3 <file>.py

import triton
import torch
import triton.language as tl

@triton.jit
def assert_kernel(x_ptr, y_ptr, n_elements, BLOCK: tl.constexpr):
    pid = tl.program_id(0)
    offsets = pid * BLOCK + tl.arange(0, BLOCK)
    mask = offsets < n_elements
    x = tl.load(x_ptr + offsets, mask=mask)
    tl.device_assert(x > 0, "Input values must be positive!")
    tl.store(y_ptr + offsets, x, mask=mask)

def test_assert():
    x_valid = torch.tensor([1.0, 2.0, 3.0, 4.0], device="npu")
    y = torch.empty_like(x_valid)

    grid = (triton.cdiv(x_valid.numel(), 4),)
    assert_kernel[grid](x_valid, y, x_valid.numel(), 4)

    x_invalid = torch.tensor([1.0, -2.0, 3.0, 4.0], device="npu")
    assert_kernel[grid](x_invalid, y, x_invalid.numel(), 4)

if __name__ == "__main__":
    test_assert()

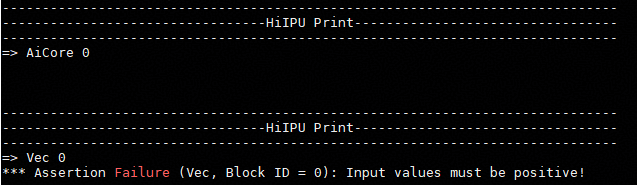

Assertion effect¶

device_print¶

Note: Set export TRITON_DEVICE_PRINT=1 before using this function.

API¶

# prefix: str – string printed before the values
# *args - tensors or scalars to print
# hex: bool – print in hex or decimal

# Triton Language API
triton.language.device_print(prefix, *args, hex=False) -> None

Example¶

You can verify the correctness of the functionality by running python3 <file>.py

import triton
import torch
import triton.language as tl

@triton.jit
def print_kernel(x_ptr, y_ptr, n_elements, BLOCK: tl.constexpr):
    pid = tl.program_id(0)
    offsets = pid * BLOCK + tl.arange(0, BLOCK)
    mask = offsets < n_elements
    x = tl.load(x_ptr + offsets, mask=mask)
    tl.device_print("x = ", x)
    tl.store(y_ptr + offsets, x, mask=mask)

def test_print():
    x_valid = torch.tensor([1.0, 2.0, 3.0, 4.0], device="npu")
    y = torch.empty_like(x_valid)

    grid = (triton.cdiv(x_valid.numel(), 4),)
    print_kernel[grid](x_valid, y, x_valid.numel(), 4)

if __name__ == "__main__":
    test_print()

Printing effect¶

Debug: tools¶

mssanitizer¶

The command-line tool detects the Triton kernel memory, race conditions, and uninitialized access. Set export TRITON_ENABLE_SANITIZER=true before using this function.

Usage¶

# Start the Triton kernel directly.
mssanitizer python test.py

Example¶

The following Triton add example uses an incorrect offsets calculation to show mssanitizer detection:

import torch
import triton
import triton.language as tl

@triton.jit
def add_kernel(
    x_ptr,
    y_ptr,
    output_ptr,
    n_elements,
    BLOCK_SIZE: tl.constexpr,
):
    pid = tl.program_id(axis=0)
    block_start = pid * BLOCK_SIZE
    offsets = block_start + tl.arange(0, BLOCK_SIZE) - 10
    mask = offsets < n_elements
    x = tl.load(x_ptr + offsets, mask=mask)
    y = tl.load(y_ptr + offsets, mask=mask)
    output = x + y
    tl.store(output_ptr + offsets, output, mask=mask)

def add(x, y):
    output = torch.empty_like(x)
    n_elements = output.numel()
    BLOCK_SIZE = 1024
    grid = (triton.cdiv(n_elements, BLOCK_SIZE),)
    add_kernel[grid](
        x, y, output,
        n_elements,
        BLOCK_SIZE=BLOCK_SIZE
    )

    return output

if __name__ == "__main__":
    size = 1024
    x = torch.rand(size, device='npu:0')
    y = torch.rand(size, device='npu:0')
    output_triton = add(x, y)

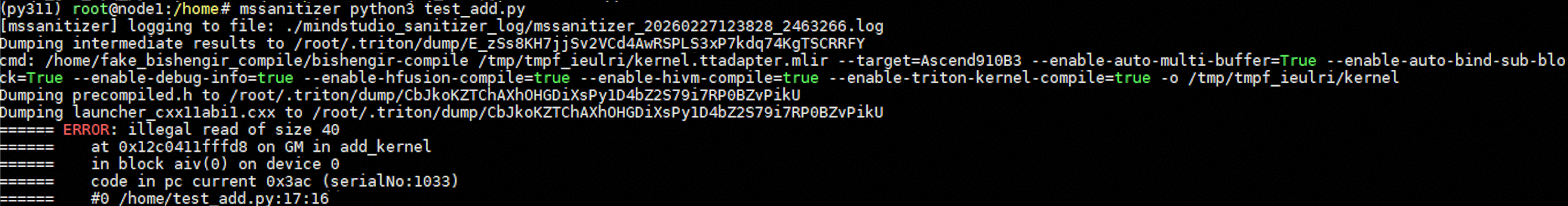

Running mssanitizer python3 test_add.py produces console output where mssanitizer reports a GM out-of-bounds read at the tl.load node (e.g. 40 bytes for 10 * float32).

Note: For more information about mssanitizer detection, see MindStudio Operator Development Tools.

msprof¶

The command-line profiling tool collects and analyzes Triton kernel performance data.

Usage¶

# Full-network on-device profiling
# --output: directory for profiling data (default: current dir)
# --application: command executing on the entire network
msprof --output=xxx --application=""

# Single-operator on-device profiling
# --output: directory for profiling data (default: current dir)
# --application: command executing on a single operator
# --kernel-name: kernel name to collect (supports prefix match)
# --aic-metrics: enable metrics (Roofline, Occupancy, MemoryDetail, etc.)
msprof op --output=xxx --application="" --kernel-name=xxx --aic-metrics=xxx

# Single-operator simulation tuning
# --core-id: IDs of some logical cores to parse their simulation data
# --kernel-name: kernel name to collect (supports prefix match)
# --soc-version: simulator type
# --output: directory for profiling data (default: current dir)
msprof op simulator --core-id=xxx --kernel-name=xxx --soc-version=Ascendxxx --output=xxx

Common performance analysis charts¶

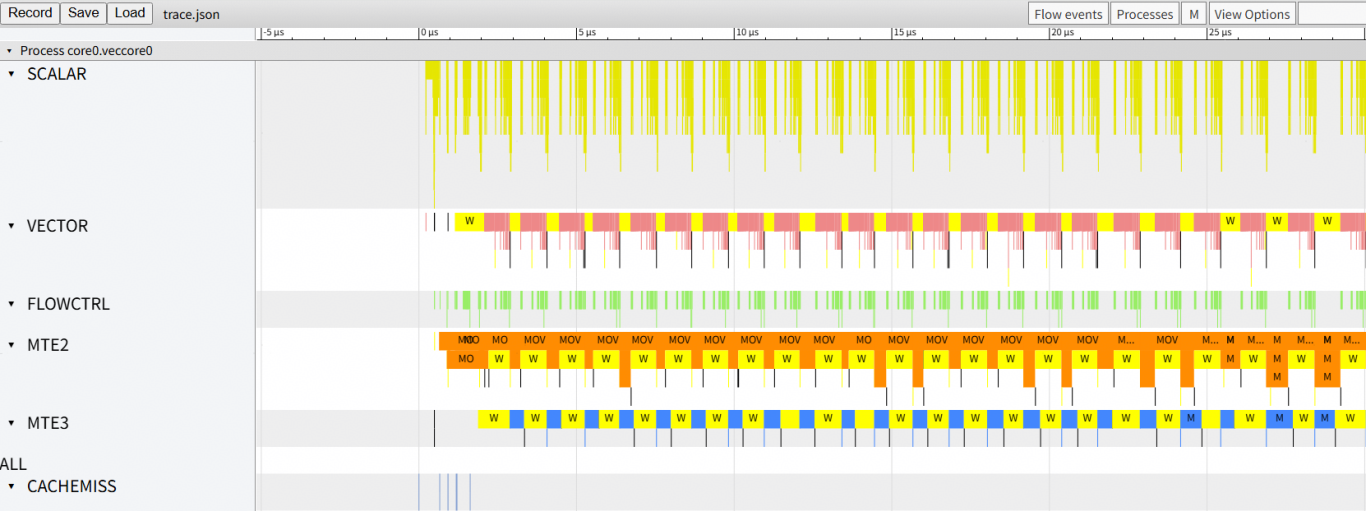

trace.json: Open in chrome://tracing/ for instruction pipeline view.

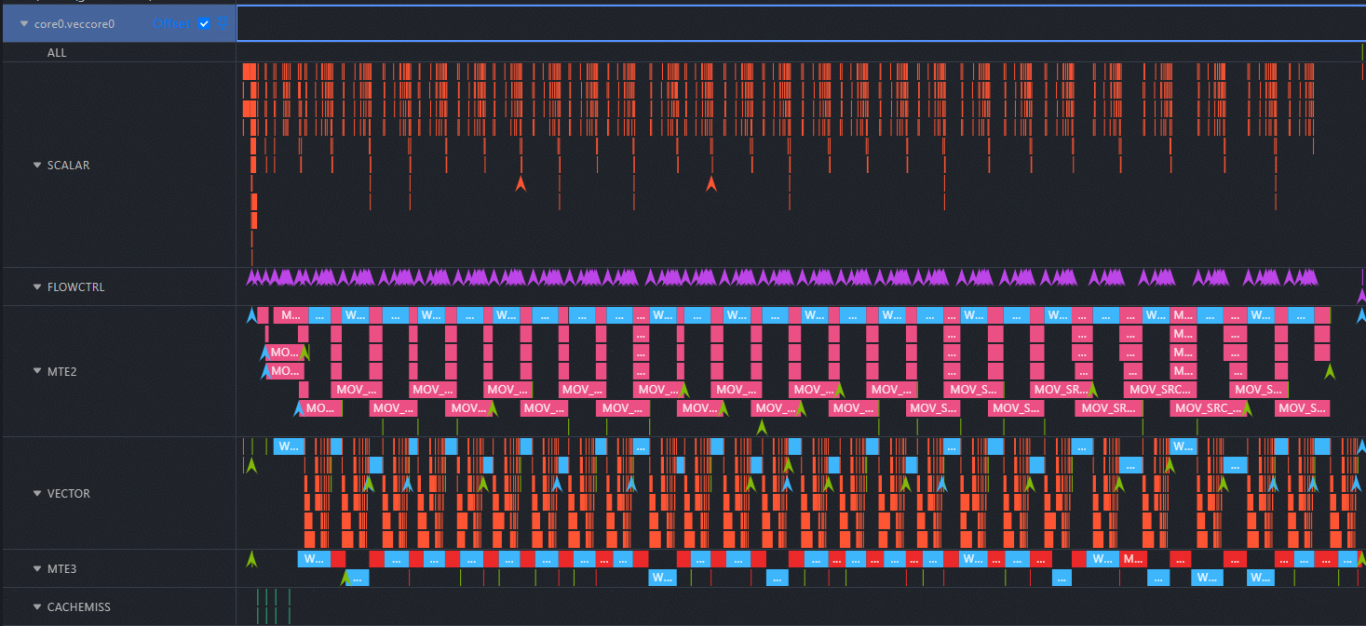

visualize_data.bin: Open in MindStudio Insight to visualize instruction execution on the Ascend AI processor.

Note: For more information about performance analysis charts, see MindStudio Operator Development Tools.

Triton kernel pipeline collection¶

The following uses add kernel as an example to collect pipeline data:

import torch
import triton
import triton.language as tl

@triton.jit
def add_kernel(
    x_ptr,
    y_ptr,
    output_ptr,
    n_elements,
    BLOCK_SIZE: tl.constexpr,
):
    pid = tl.program_id(axis=0)
    block_start = pid * BLOCK_SIZE
    offsets = block_start + tl.arange(0, BLOCK_SIZE)
    mask = offsets < n_elements
    x = tl.load(x_ptr + offsets, mask=mask)
    y = tl.load(y_ptr + offsets, mask=mask)
    output = x + y
    tl.store(output_ptr + offsets, output, mask=mask)

def add(x, y):
    output = torch.empty_like(x)
    n_elements = output.numel()
    BLOCK_SIZE = 1024
    grid = (triton.cdiv(n_elements, BLOCK_SIZE),)
    add_kernel[grid](
        x, y, output,
        n_elements,
        BLOCK_SIZE=BLOCK_SIZE
    )

    return output

if __name__ == "__main__":
    size = 1024
    x = torch.rand(size, device='npu:0')
    y = torch.rand(size, device='npu:0')
    output_triton = add(x, y)

Run msprof op simulator --kernel-name="add_kernel" --soc-version=Ascend910B4 --core-id=0 --output=./ python3 test_add.py. This creates an OPPROF with a timestamp directory in the current path.

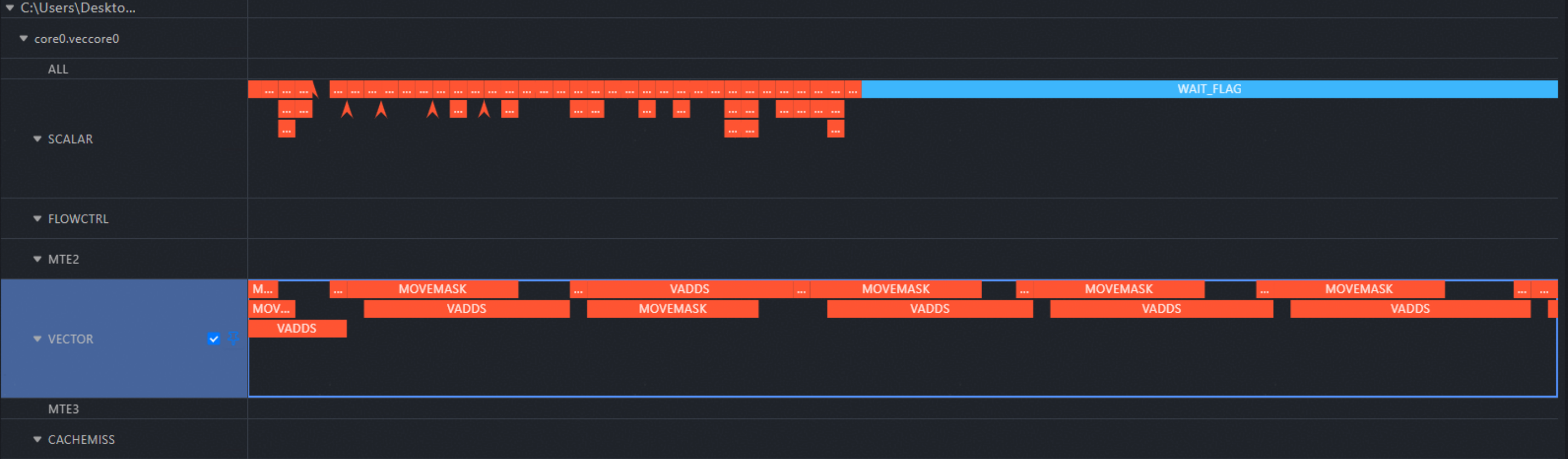

Open the simulator/visualize_data.bin file in MindStudio Insight to view the pipeline for the selected core (e.g. core 0), the two types of commonly used performance pipeline charts (trace.json/visualize_data.bin) described earlier can be both found in the ./OPPROF_<Timestamp>/simulator directory.
